Timegrapher M1500A
Description
Description

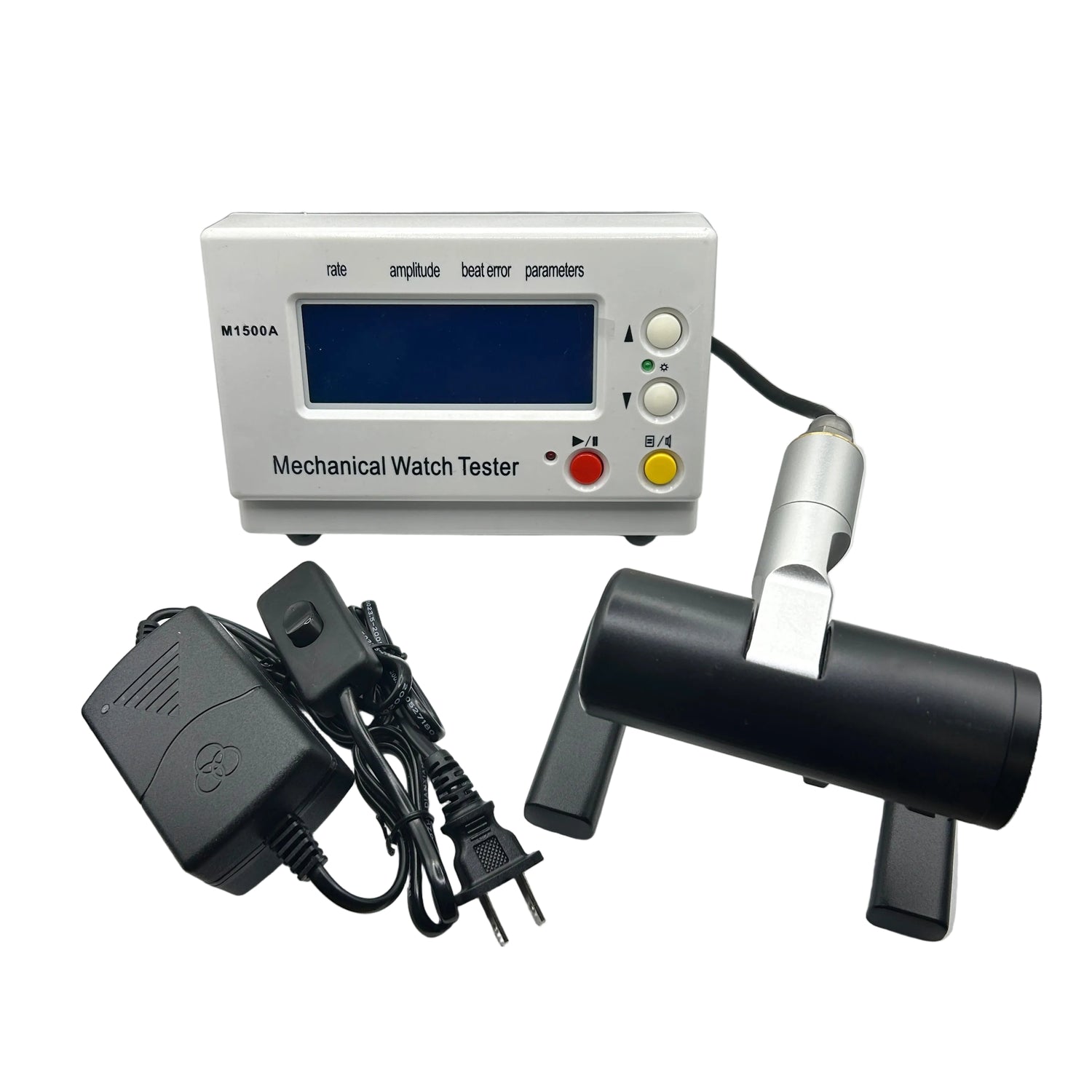

This Timegrapher M1500A is a precise mechanical watchtest instrument used for multi-testing. The frequency diagram of the watch can be displayed on the LCD screen and the instrument will automatically adjust optimal signal level during testing and calculate the rate/amplitude/beat error. The specifications are as follow:
Beat Rate: 12000 / 14400 / 18000 / 19800 / 21600 / 25200 / 28800 / 36000 / 43200
Measuring Possibilities: Beat Rate, Beat Error, Beat Number, Amplitude
Signal Gain Level: Automatic or Manual
Beat Rate Range: +/-999 s/d
Beat Rate Resolution & Accuracy: 1 s/d & +/-1 s/d
Beat Error Range: 0.0 ms - 9.9 ms
Beat Error Resolution & Accuracy: 0.1 ms & +/-0.1 ms
Amplitude Range: 100° - 360°
Amplitude Resolution: 1°
Amplitude Accuracy: +/- 3°
Amplitude Lift Angle Adjustment: 30°-70°
Display Type & Resolution: 4.3" Colour LCD / 480 x 272 pixels
Diagram Display: Horizontal
Time Base & Stability: +/- 0.1 s/d
Case Dimensions: 185mm x 120mm x 40mm
Power Supply: 100v - 240v
6 Position Programmed Test Mode: 1-6 Selectable positions. 2-60s measuring time per position
