Snap-In Continuous Sweep Movement - 1/2" these snap-in movements use hands where both the hour and minute hands have round holes and fit via friction onto the hand shafts. The center shaft has a diameter of 7.9mm (5/16".) The movement is supplied with a hanger and center nut. The movement measures 55.6mm (2 3/16") wide x 55.6mm (3/16") high x 15.9mm x (5/8") deep. The movement runs on a AA battery (not included).The hour hand mounting diameter is 5.0mm (13/64"), the mounting diameter for the minute hand is 3.15mm (1/8") (not included). For hour and minute hands choose from style "E" (not included).Sweep hands choose from style "A".

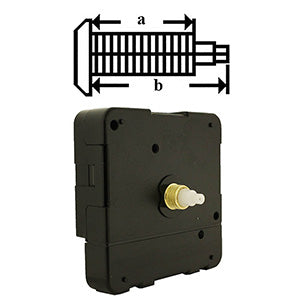

Order # | Max Diak Thickness | Threaded Shaft (a) | Overall length (b) |
74-795HT-4A | 12.7mm (1/2") | 13.5mm (17/32") | 23mm (29/32") |
*Please purchase hands and batteries separately.
