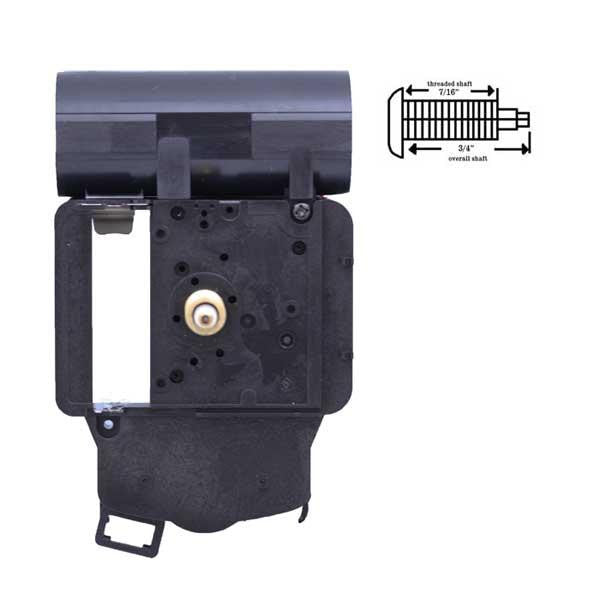

Westminster Pendulum Chime Movement 3/8"

$33.85
SKU 74-774

Notify me when back in stock

Westminster Pendulum Chime Movement 3/8" Movements will drive hands up to 108.0 mm (4-1/4") (minute hand) in length. This quartz movement has a built in speaker and a pendulum function. The movement measures 4-120.7 mm (3/4") (H) x 76.2 mm (3") (W) x 31.6 mm (1-1/4") (D). This quality movement plays the traditional Westminster chime melody every quarter hour, as well as counting the hours on the hours. The movement runs on a "C" battery (not included). How to adjust: If the minute hand is not at the 12:00 position when the movement chimes, the final adjustment is made by turning the white screw on the back of the movement at the top. If movement chimes early turn the screw counter-clockwise, if chiming late turn clockwise. These movements have step second motion, second hand moves in exact one second steps. Movements are supplied with hardware. Hands, pendulum and battery are not included. Made in China. For hour and minute hands choose from style "A". Sweep hands choose from style "A".

Order #
Max Dial Thickness
Threaded Shaft (a)
Overall Length (b)
74-774
9.5mm (3/8")
11.1mm (7/16")
19.1mm (3/4")

*Please purchase hands, pendulum & batteries separately.
